Module program

People : Maarten, Daniel, Didier, Sergio, Stephane

Tasks	Status	Documents
Module design	complete	Design, 1^st view, 2^nd view Stereo & axial orientation
Hybrid Assembly	Procedure	Assembly procedure Related pictures
Module Assembly	Jig design complete	Assembly description Drawing files
Test box	Design OK 3 boxes done 3 to be complted	Description Module mounting instructions
4 Module test box	1 done, 1 to be completed Small will have to be made	Description
Adaptors	Infiniband to IDC: OK Pigtail extender: Few available, Connectors to be mounted Module Adaptor: Fab OK, SMD to be mounted	Infiniband adapter Pigtail extender Module adapter (latest) Module adapter (old)
Temperature reading	Hardware: Under fabrication Prototype: Validated Software: Done	Download Labview application
Modules mounted in the 4 module test box	Mounted	Pictures (2 modules) Pictures (3 modules) Pictures (4 modules)
KEK Module 5	In test at CERN 180	Reception pictures (Unige) Wire bonding picture (UniGe) NI-DAQ test (Bldg 180) Performances (NI-DAQ)

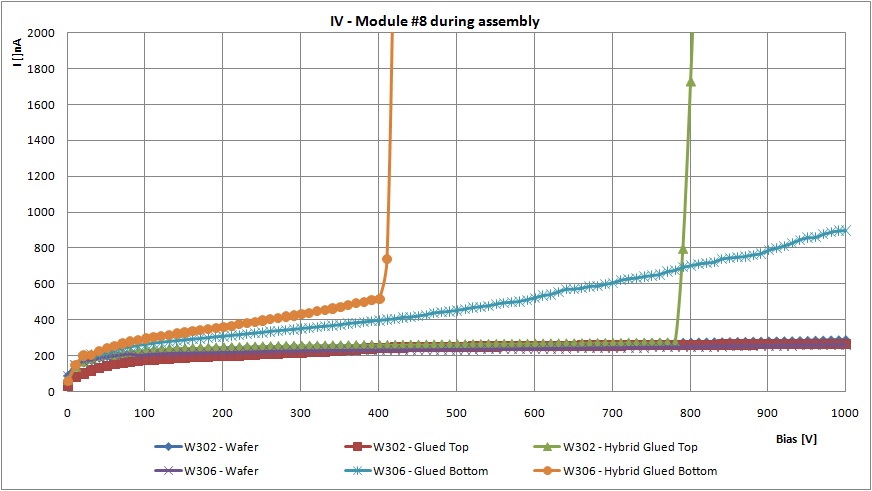

Module 8	Completed	Assembly Info IV, Pictures

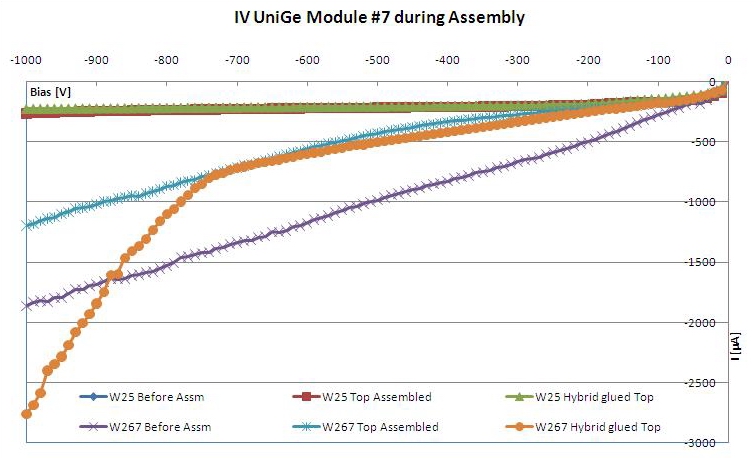

Module 7	Completed	Assembly Info Investigations IV, HV problems Pictures

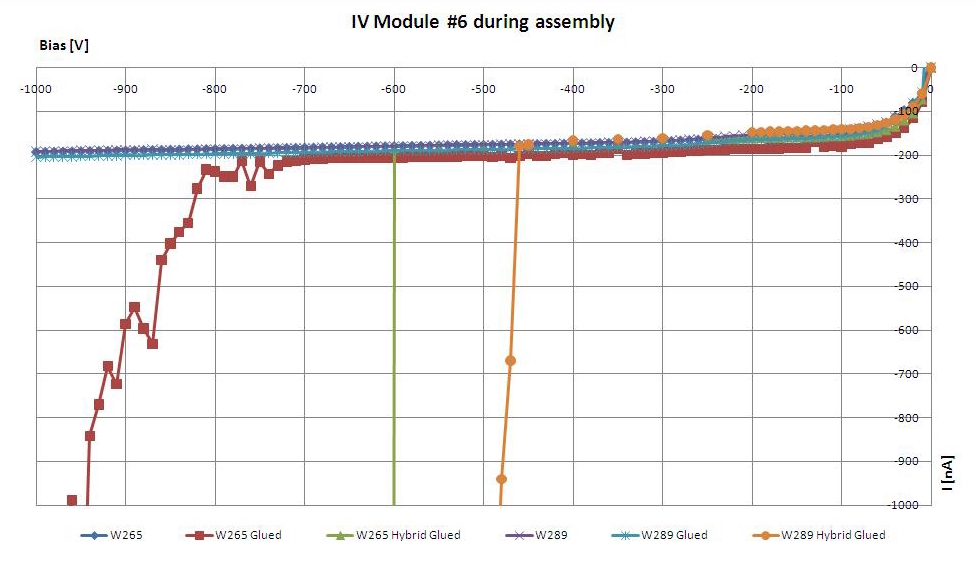

Module 6	Completed	Assembly Info IV, IV in test box, Pictures Readout results
Module 4	Completed	Assembly Info Pictures Readout results

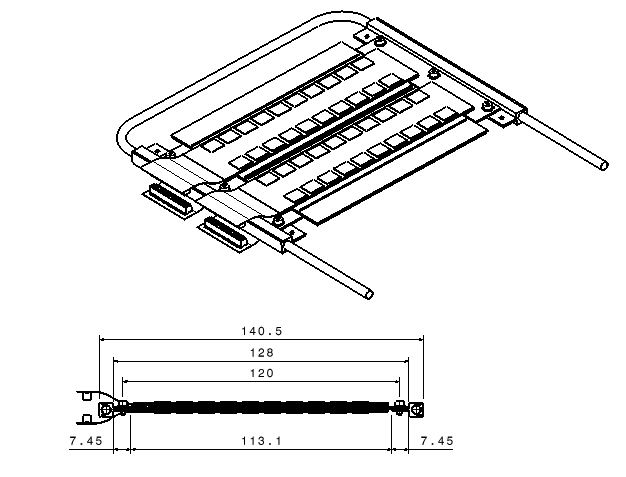

Module 2	Completed	Assembly Info Pictures 3PtGain results

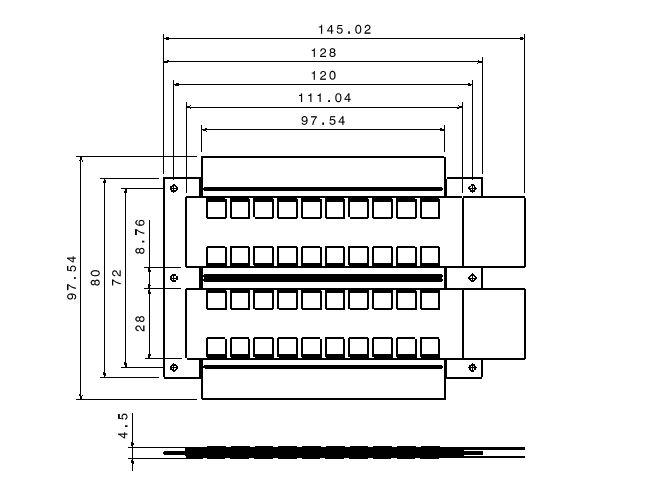

Module 1	Completed	Assembly Info Planning Pictures IV Module bonded 3PtGain results Trimming results
Module 0 Irradiated in Novt09	Completed To be tested extensively	Box Pictures Module Pictures Module in PS-T7 Al Fluence measurements Module After Irrad Tracking the Module Chillier choice Logbook Irrad

Meetings	Talks
ABCN test meeting Mar 10^th 2010	Irrad Module (Sergio)
ABCN test meeting Jan 27^th 2010	Chip Fuse (Didier)
ABCN test meeting Jan 27^th 2010	Module #1 results (Sergio)
MIWG of April 28^th 2009	Module program (Didier)
